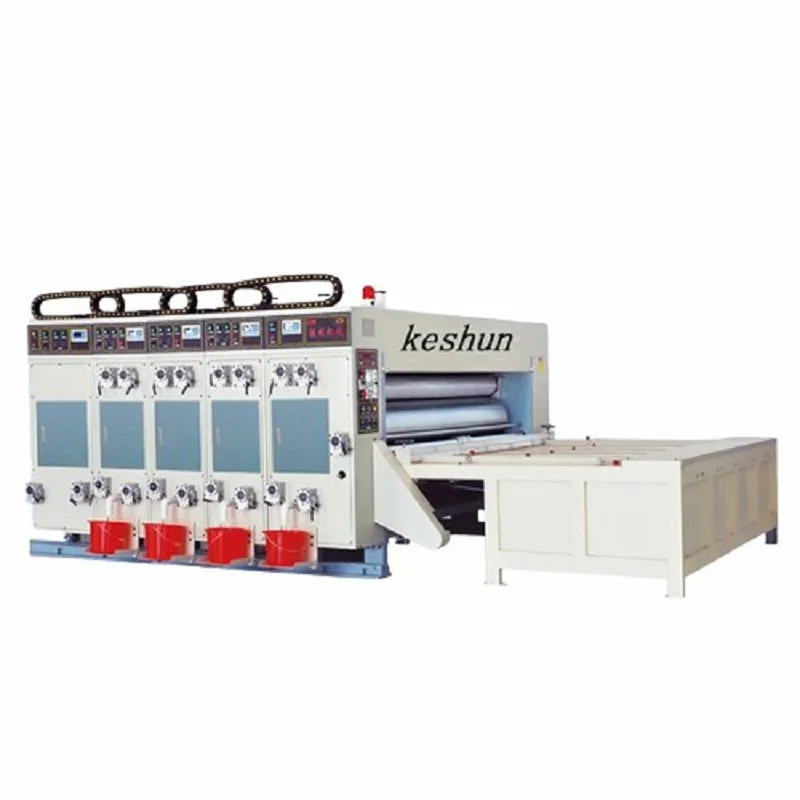

মনো কার্টন প্রিন্টিং মেশিন

Mono Carton Printing Machine is an ink corrugated cardboard printing press cutting angle slotting machine,it is an improved production based on the design of high-speed printing machines, but the paper feeding method is different. The work efficiency of 80 pieces per minute has significant advantages compared to ordinary chain machines, especially in adapting to the printing of large and wide cardboard.

The Mono Carton Printing Machine is a single sheet cardboard manual feeding machine, which has the characteristics of novel appearance, convenient operation, and clear and accurate printing. This model is driven by helical gears, which are subjected to high-frequency quenching and tempering treatment, and are made of high-quality carbon structural steel and alloy steel. The main transmission gear is connected by a cross slider and lubricated by a spray type circulating lubrication. The electric phase adopts a planetary gear structure, and the working and stopping states can be adjusted 360 degree electrically. The adjustment parameters can be set digitally, achieving the function of erasing and memory, and it is intuitive and easy to operate. The electrical components adopt well-known domestic brands with reliable quality. The carton box printing machine can also be equipped with quadruple version free die-cutting, electric lateral movement, circular pressing and circular die-cutting according to user needs.

1. The Mono Carton Printing Machine adopts a chain paper feeding method with dual side gauge positioning to ensure accurate paper feeding The unit adopts an electric split body, pneumatic locking, pneumatic plate lifting, automatic ink leveling, and pneumatic brake split positioning.

2.The printing and die-cutting adopt a planetary gear structure, with electric 360 degree adjustment. The digital display lubrication method adopts dual oil pumps, automatic spraying, and circulating oil supply to maintain oil level balance, greatly improving operating accuracy and service life.

3.The gear of the entire machine is made of 45 # steel, with oblique tooth design and high-frequency quenching after shaving The transmission of the entire machine adopts a cross slider structure and a keyless connection sleeve, eliminating link gaps and ensuring smooth operation.

4.Complete machine shaft, roller, grinding processing, hard chromium plating.

Optional hanging plate, with a mesh size of 180-260.
